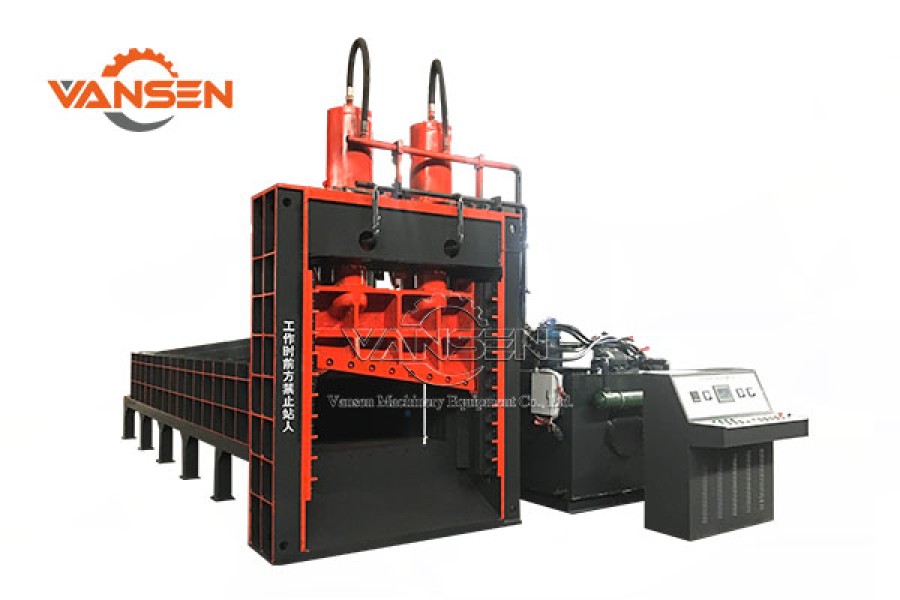

The hydraulic gantry shearing machine has strong cutting ability, small floor area, good mobility, easy operation, maintenance free, energy-saving and electricity saving, automatic lubricating oil addition at startup, saving labor, multiple functions of one machine, which can process both boards and cut bars. The rear material rack has automatic avoidance function, and there is no need for cement foundation fixation during work. It can be changed to a flexible work site at any time.
The hydraulic gantry shearing machine has strong cutting ability, small floor area, good mobility, easy operation, maintenance free, energy-saving and electricity saving, automatic lubricating oil addition at startup, saving labor, multiple functions of one machine, which can process both boards and cut bars. The rear material rack has automatic avoidance function, and there is no need for cement foundation fixation during work. It can be changed to a flexible work site at any time. Our company's various series of mechanical equipment are suitable for processing and cutting various plates into various specifications of materials, especially for the use of non-ferrous metal plates, bars, and ferroalloy furnace materials; Special sheet materials; Shipboard from the shipyard; Processing of automotive panels; The scrap steel recycling industry is more applicable. Among them, heavy-duty hydraulic shear machines can replace flame cutting to process ultra-thick sheet and bar products, reducing processing and production costs. It has advantages such as low price, low energy consumption, and high efficiency among similar products in the same industry.
Scope of application: Steel mills, scrapped car dismantling companies, scrap steel recycling companies, etc. Applicable materials include scrapped car shell components, car doors, engine covers, colored steel tiles, aluminum alloy doors and windows, iron barrels, stainless steel, stamping scraps, steel pipes, water pipes, tires, etc.
This product uses hydraulic cylinders to cut materials. During operation, the rotation of the motor drives the oil pump to work, extract hydraulic oil from the oil tank, transport it through hydraulic oil pipes, and transmit it to each hydraulic cylinder, driving the piston rod of the cylinder to perform lateral movement to shear various sizes of waste.
1. Start the cutting machine and idle it for several cycles to ensure that under normal circumstances, different thicknesses of plates can be cut from thin to thick. Ensure that users are familiar with the performance of the shearing machine. 2. When trying to cut, it is necessary to adjust the gap between different blades for different plate thicknesses. If the corresponding blade gap is not adjusted, it will affect the durability of the blade. 3. During the shearing process, turn on the pressure gauge switch and observe the pressure value of the oil circuit. When cutting a 12mm plate, the pressure should be less than 20MPa. This remote pressure regulating valve No9 has a pressure setting of 20-22MPa when leaving the factory. Users need to comply with this regulation and should not increase the pressure for cutting materials beyond the specified surface, which may cause damage to the machine. 4. Sound balance during operation. If there is any noise from the cutting machine, it should be stopped for inspection. When the oil tank temperature increases by 60 degrees Celsius during the operation of the 5 shearing machine, shut down the machine and rest.
